AP110 Planetary Gearbox Technical Specifications
The table below presents the rated values for the AP110 planetary gear reducer. All figures reflect tested, production-unit data.
| Parameter | Value |
|---|---|
| Output Torque | 25 Nm |
| Output Torque (2-Stage) | — |
| Available Ratios | — |
| Backlash Grades | 3 |
| Nominal Input Speed | 3,000–5,000 rpm |
| Max Input Speed | 10,000 rpm |
| Torsional Rigidity | ≥ 7 N·m/arcmin |
| Service Life | ≥ 20,000 hours |
| Efficiency | ≥ 95% |
| Operating Temperature | −10°C to +90°C |
| Lubrication | Synthetic lubricating oil |
| Protection | IP65 |
| Mounting | Any orientation |
| Noise | ≤ 65 dB(A) |

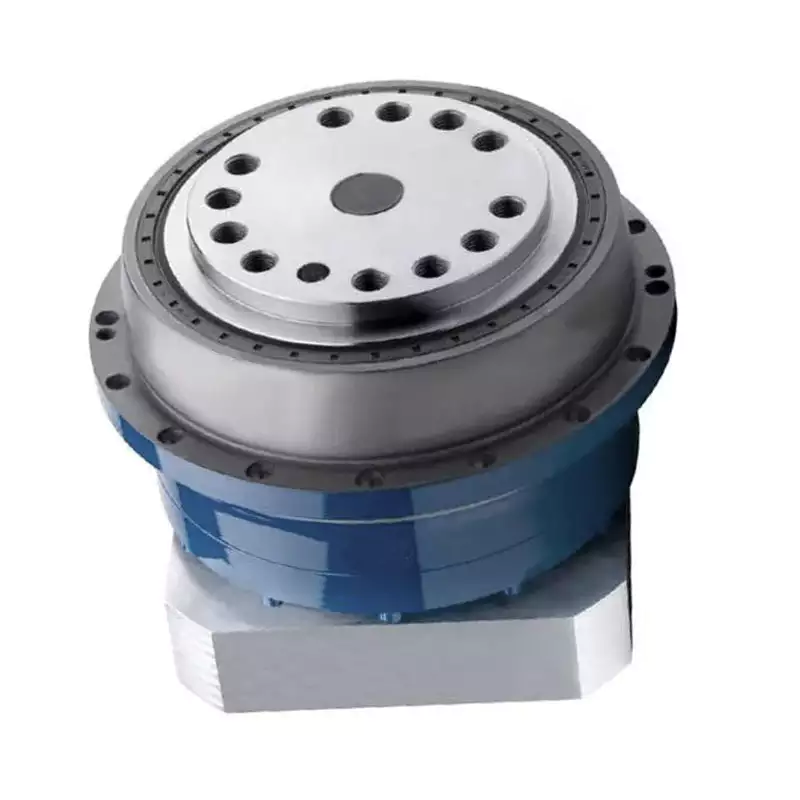

AP110 Precision Planetary Gearbox — Product Overview
The AP110 is an inline precision planetary gearbox delivering output torque of 25 Nm with backlash as low as ≤ 3 arcmin. It is engineered as a direct mechanical replacement for the APEX AP110, sharing identical flange dimensions, bolt patterns, and shaft interfaces for a zero-rework retrofit. Each unit ships factory-tested under full load, with backlash, vibration, and noise readings recorded on an individual QC certificate.
Manufactured under an ISO 9001-certified quality system, this planetary gearbox is increasingly specified across Australia’s automation, packaging, and machine-tool sectors. Contact us for a same-day engineering recommendation and quotation.
Key Components Inside the AP110 Planetary Gearbox
Understanding the internal architecture helps engineers evaluate gear mesh quality and predict maintenance intervals. Below is a breakdown of the six core parts inside the AP110.
Case-hardened 20CrMnTi steel sun gear with helical tooth profile, ground to Ra 0.4 µm. Connects to the servo motor input shaft and distributes torque to the surrounding planet gears with minimal friction and noise.
Three equally-spaced planet gears orbit the sun gear while meshing with the ring gear. Multi-point load sharing delivers higher torque density and longer service life than single-mesh arrangements.
Forged alloy steel carrier holds the planet gears in equidistant positions and converts their orbital motion into a single rotary output. Withstands repeated shock loads without deformation.
Nitrided 42CrMo steel ring gear interference-fitted inside the aluminium housing. Maintains consistent backlash over the full rated service life.
Tapered roller output bearings handle combined radial/axial loads; deep-groove ball input bearings support high-speed rotation. Preload set during assembly for optimal stiffness.
CNC-machined aluminium alloy housing with double-lip FKM seals at both flanges. IP65 protection keeps lubricant in and contaminants out.
Performance Advantages of the AP110
Ultra-Low Backlash
The AP110 ships with backlash from ≤ 3 arcmin (micro) to ≤ 7 arcmin (standard), letting engineers match precision to cost. Multi-axis servo systems maintain repeatability over the full ≥ 20,000 hours service life.
High Torque Density
Output torque of 25 Nm in a compact housing makes the AP110 ideal for space-constrained builds — cobot joints, semiconductor handlers, compact conveyors.
Efficiency ≥ 95%
Each stage operates at ≥ 95% efficiency, compounding into measurable energy savings versus worm gear reducer alternatives that lose 30–50 % of input power as heat.
Replacement Parts & Spare Components for the AP110
Beyond complete assemblies, Ever-Power stocks individual replacement parts for the AP110 at our Condell Park NSW warehouse. Contact our parts desk with your serial number for compatibility confirmation.
| Component | Material | Stock |
|---|---|---|
| Sun Gear | 20CrMnTi steel, helical | In stock |
| Planet Gear Set (3 pcs) | 20CrMnTi + needle bearings | In stock |
| Planet Carrier | Forged alloy steel | In stock |
| Ring Gear | 42CrMo nitrided steel | In stock |
| Output Bearing Kit | Tapered roller + shims | In stock |
| Input Bearing Kit | Deep-groove ball bearings | In stock |
| Seal Kit | FKM / Viton double-lip | In stock |
| Lubricant Refill | Synthetic gear oil | In stock |
Industry Applications for the AP110 Gearbox
Robotics and Motion Control
In robotic joints and end-effector axes, the AP110 provides the torsional rigidity needed for path fidelity during high-acceleration moves. Its compact inline form reduces arm inertia, allowing faster cycle times.
Automation and Packaging Lines
The AP110’s wide ratio range lets packaging engineers size the planetary gearbox for automation without extra belt-and-pulley stages. IP65 sealing ensures reliable operation in cold-chain and ambient environments alike.
CNC Machine Tools and Medical Equipment
Ball-screw feeds, grinding-spindle drives, and surgical-robot actuators share a need for vibration-free torque. The AP110’s low-noise helical mesh and tight backlash meet these demanding standards. Precision planetary gearbox custom modifications available on request.
Manufacturing Process for the AP110
Every AP110 follows a controlled six-step production sequence.
Engineer reviews your servo specs, load profile, and duty cycle to recommend optimal configuration.
Gears hobbed on CNC centres, profile-ground to AGMA Class 11+, surface finish below Ra 0.4 µm.
Carburising and quenching to 58–62 HRC tooth-surface hardness with tough core.
Cleanroom assembly with backlash measured and adjusted to ordered grade.
Run at rated torque/speed; vibration, noise, backlash recorded on individual QC certificate.
Anti-corrosion coating, vacuum-sealed, palletised to Condell Park NSW warehouse.
